Notice: Product Images may differ from the actual product. Image may be a representation of this item.

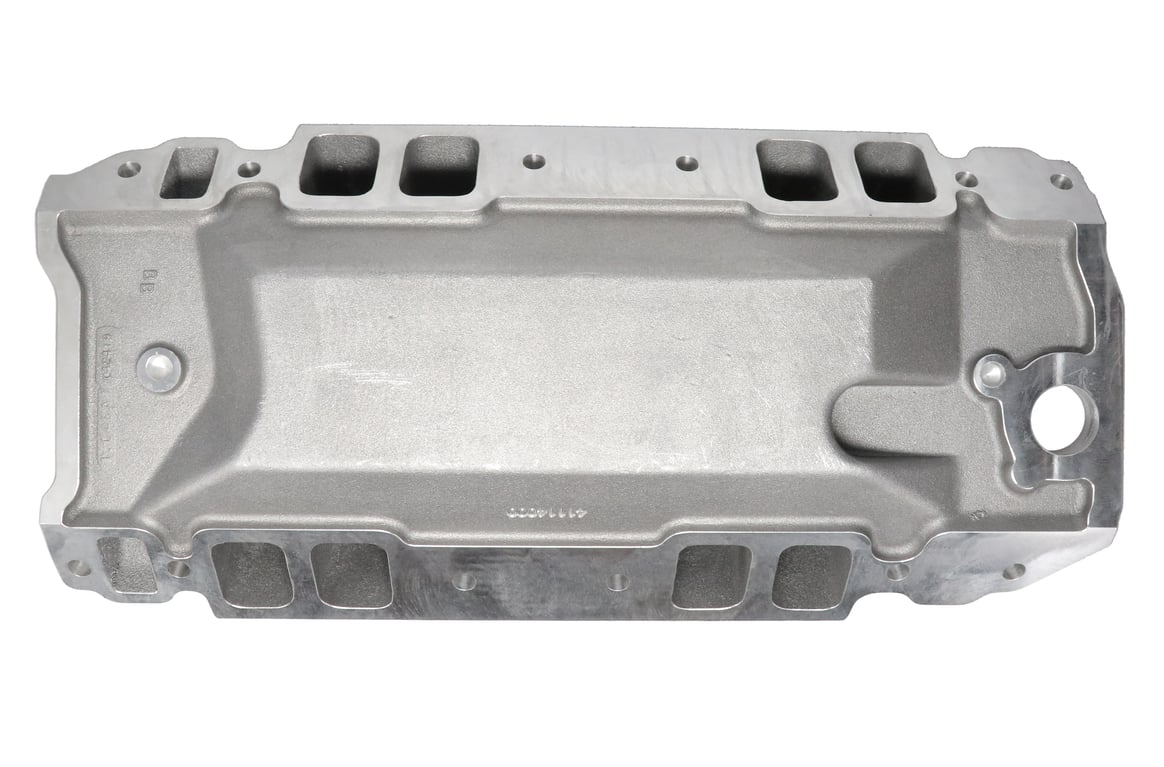

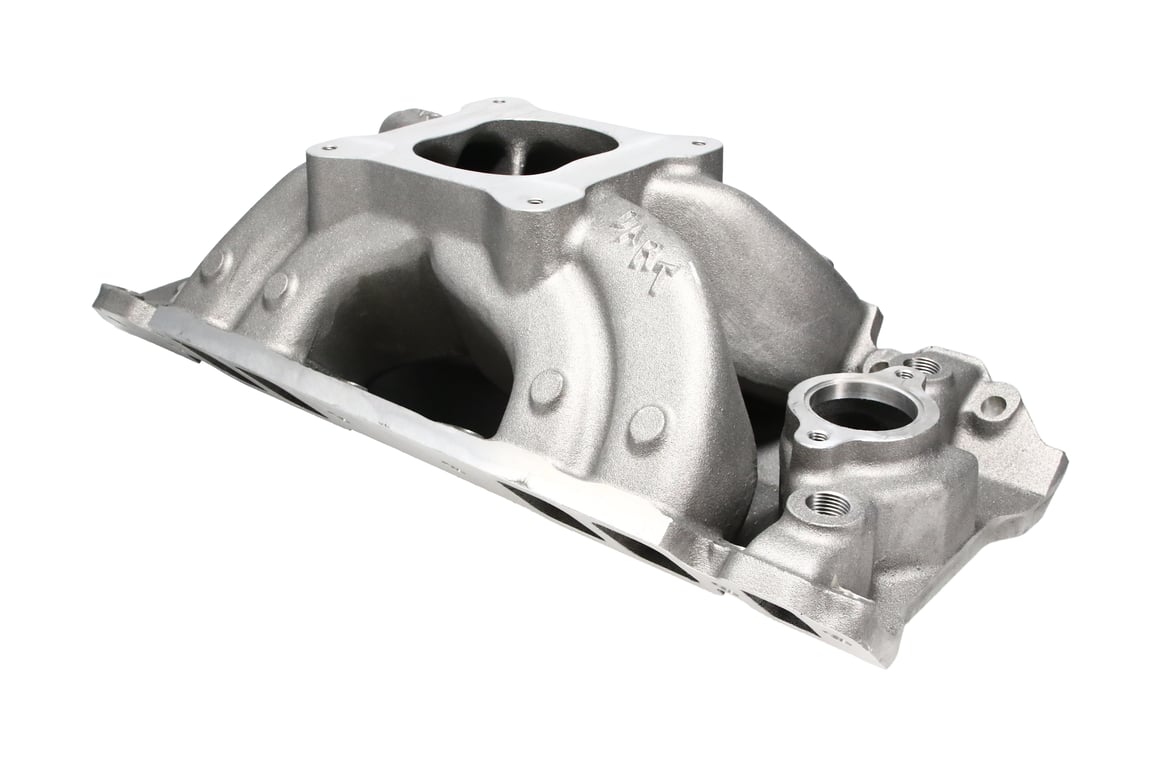

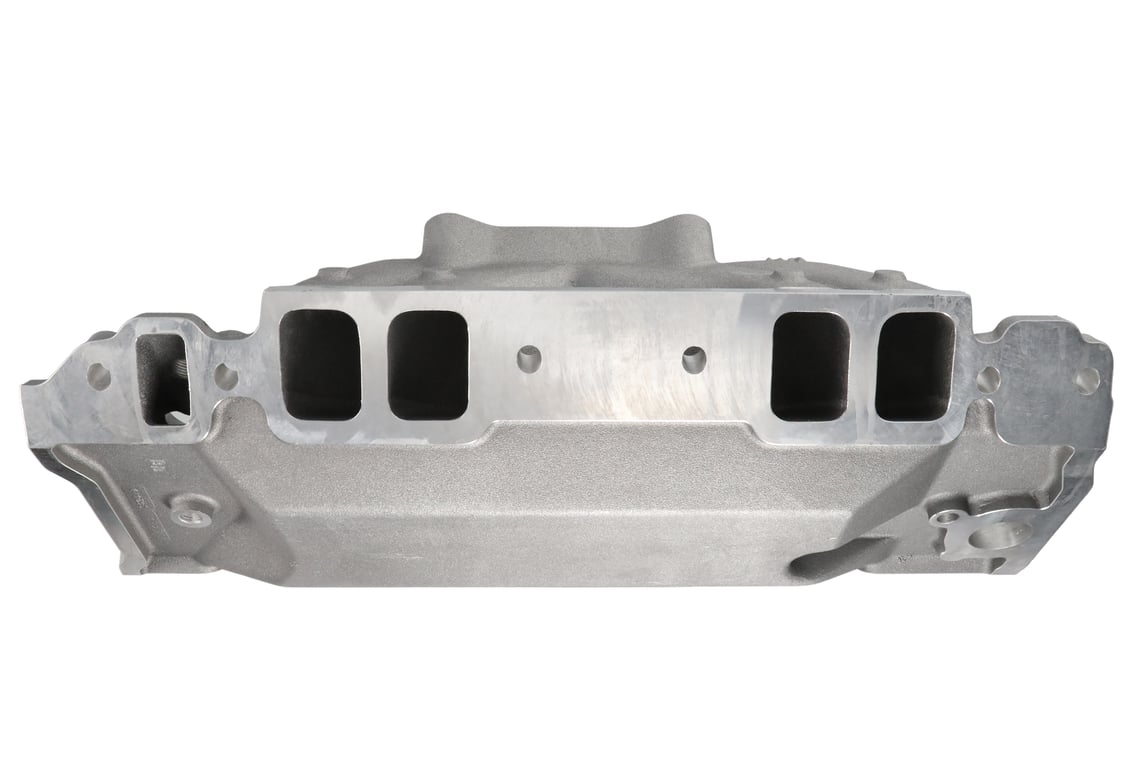

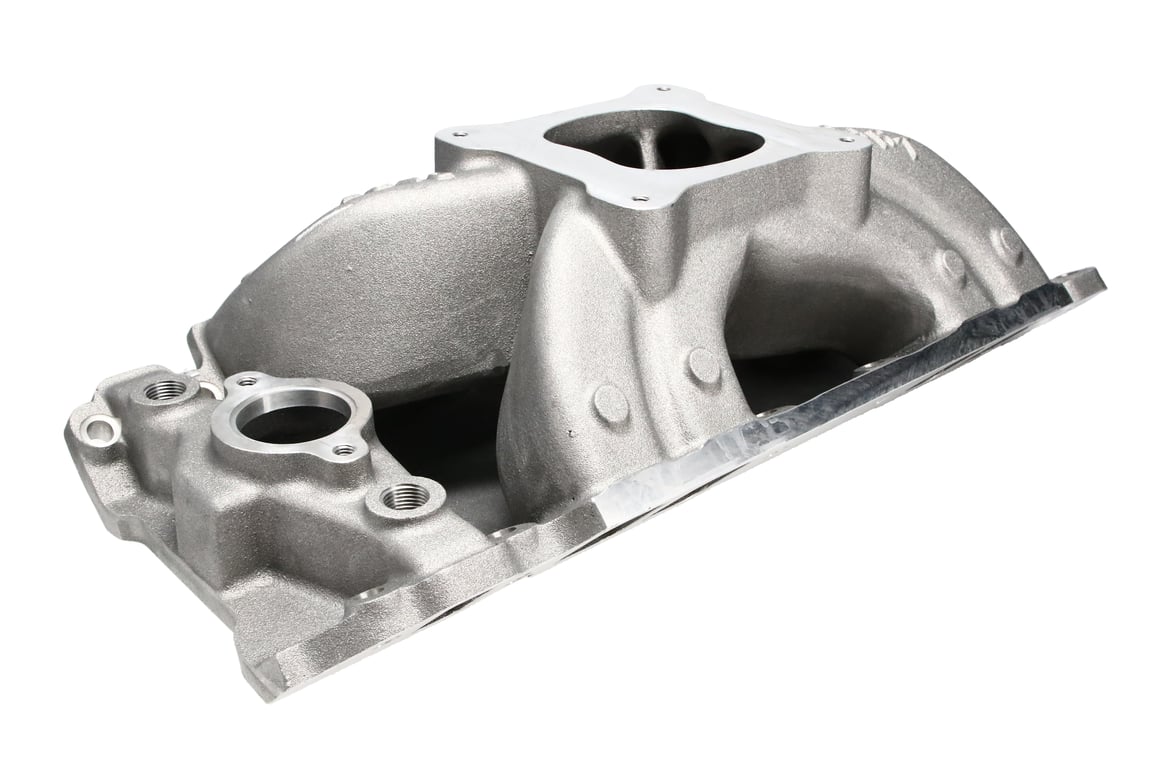

Big Block Chevy Manifold
Your Price: $645.39
SKU: 41114000
Call for Availability
–
Dart Big Block Chevy Manifolds
An engine’s cylinder heads and intake manifold must work together as an integrated system to produce maximum performance. The intake charge should make a seamless transition from the manifold runners to the cylinder head ports. Dart has accomplished this in every intake manifold we make.
GTIN: 00807051025637
| Industry | Automotive |
|---|---|
| Carburetor Flange | 4150 |
| Deck Height | 9.800 IN |
| Manifold Flange Thickness | 0.500 IN |
| Material | Aluminum |
| Port Height | 2.220 IN |
| Port Style | Rectangle |
| Port Width | 1.590 IN |
| Single Or Dual Plane Type | Single Plane |
| Engine Type | ICE |
| Product Type | Engine Intake Manifold |
